Tarot 3-axis gimbal/640 thermal/visible/dual-sensor gimbal TL3T21

category：Gimbal
Selling price：16800 RMB
Upload time：2024-04-18 13:57:59

Number of views197

Product description

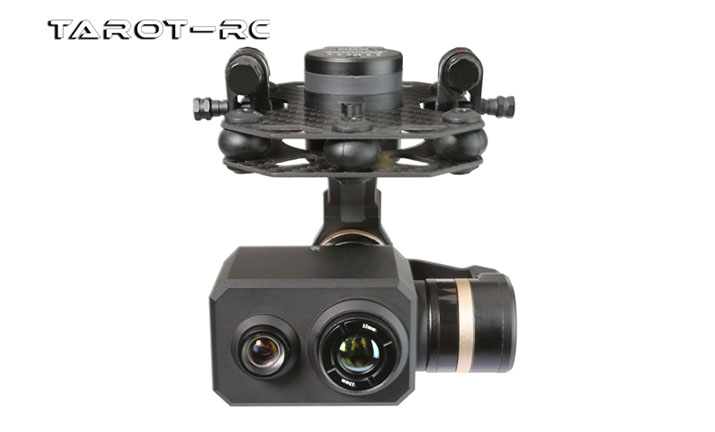

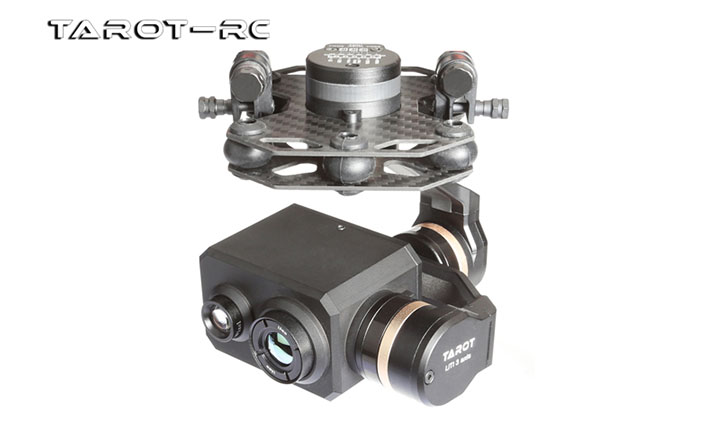

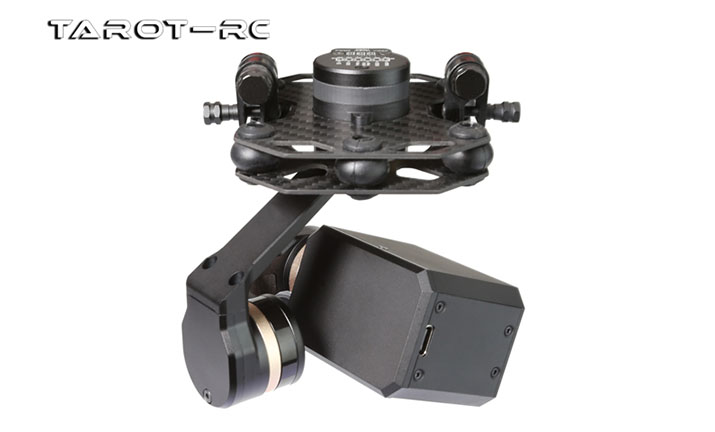

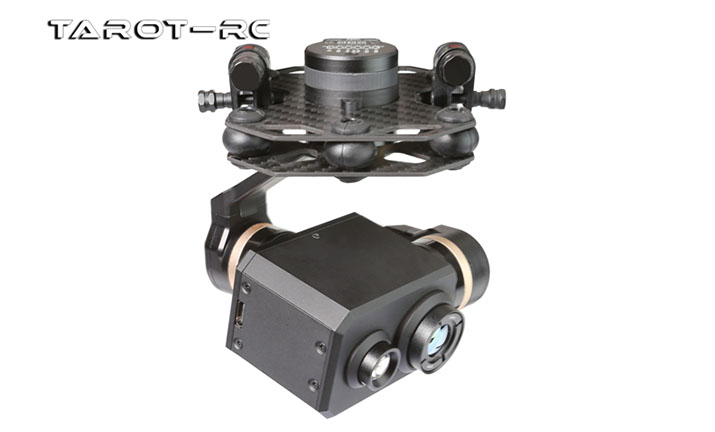

·Tarot factory built-in 640 thermal imaging movement/visible light movement of the dual-sensor three-axis gimbal
·Is our company for the power inspection,fire fighting and many other industry needs and to create a professional level

three-axis thermal imaging gimbal
·The use of full CNC overall ribbed structure industrial design, built-in independent IMU precision control gimbal posture
·Integrated gimbal dedicated servo drive module, support pointing follow and FPV first view two working modes
·Equipped with professional-grade 640 thermal imaging and 720P visible light camera
·Can be widely used in firefighting, forest security, public security monitoring, search and rescue, environmental

law enforcement and many other industries

Product characteristics

1.The gimbal supports wide voltage 3-6S input.
2.Mechanical three-axis stabilized image,±0.01°stabilized image accuracy.
3.Aluminum alloy structure design,light and strong,good heat dissipation performance.
4.Highly optimized servo motor vector control algorithm.
5.Fast AV signal video output mode.
6.RAN direction controllable angle(PAN):±125°.
7.TILT direction controllable angle(TILT):-120°to +80°.

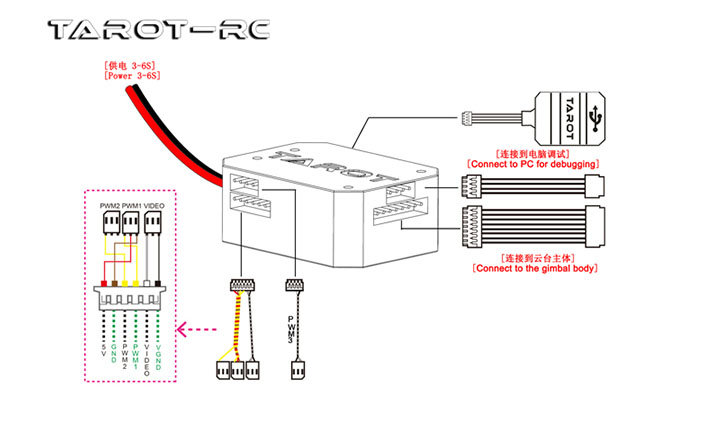

8.PWM receiver support,control gimbal Tilt/Point,two-way video switching.
9.Movement thermal imaging output resolution 640*512,visible light output 1280*720.

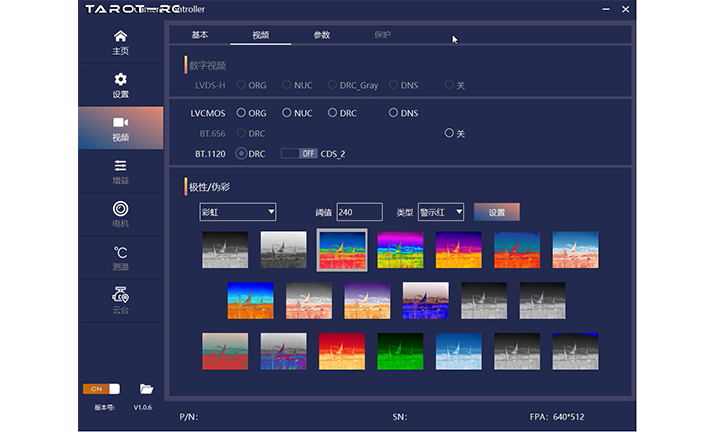

10.Movement debugging software(computer side)multi-mode optional.
11.Weight 287g
Note: The gimbal camera does not support internal recording

Packing list

Dual-sensor three-axis gimbal(287g) ×1
