Product description

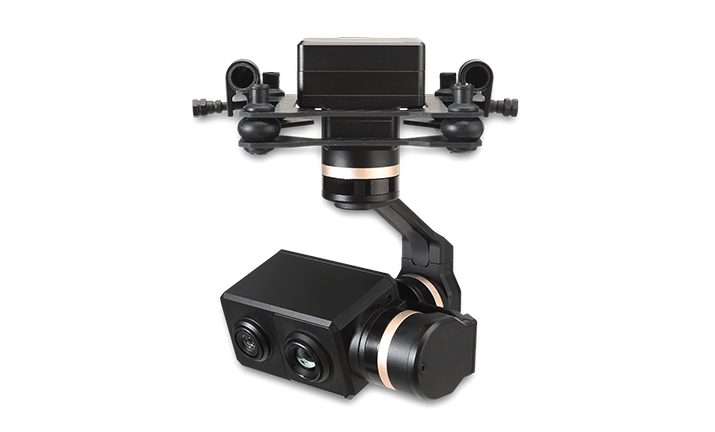

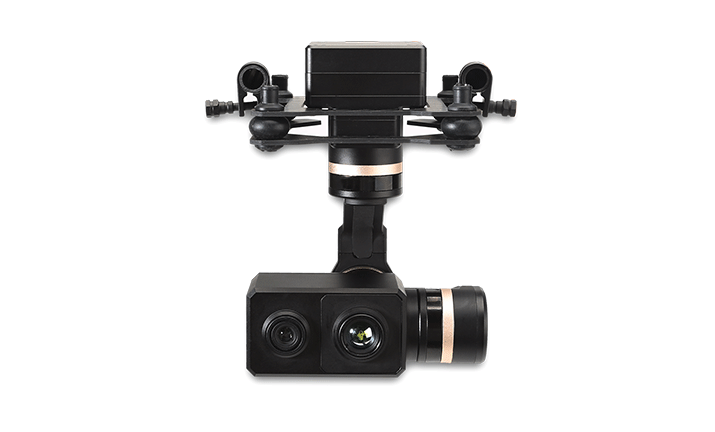

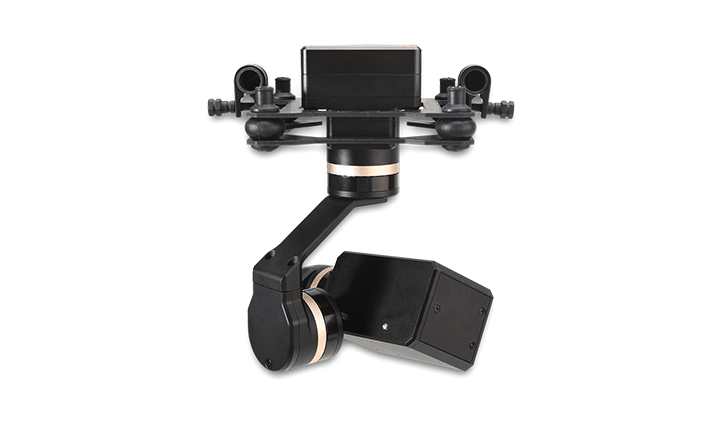

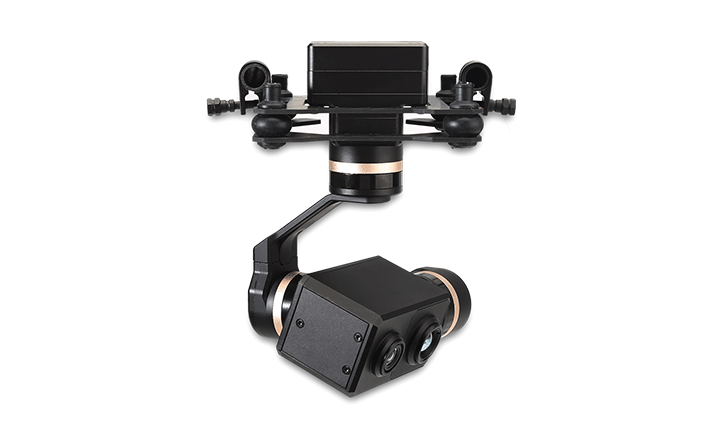

·Tarot TL3T27 is a professional-grade 3-axis dual-sensor gimbal for power inspection, firefighting and many other industries;
·It has a built-in independent IMU to precisely control the gimbal's attitude;
·Integrated servo drive module for gimbal;
·Supports both point following and FPV first view modes of operation;
·Equipped with professional grade 384 thermal imaging and 1080P visible light camera;
·It can be widely used in firefighting, forest public security, public security monitoring, search and rescue, environmental protection law enforcement and other industries.

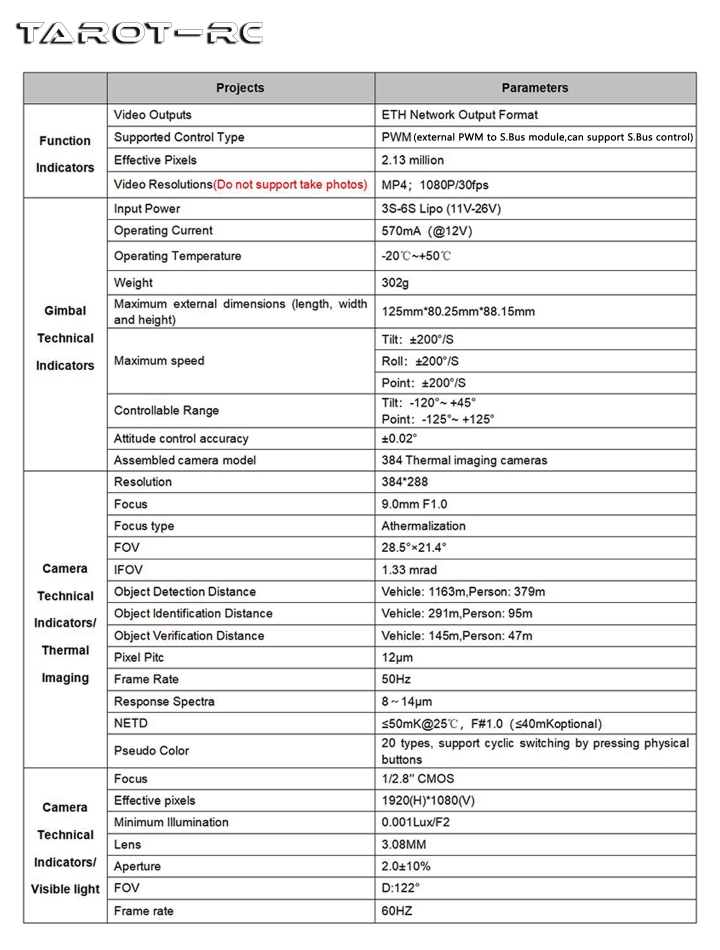

Product characteristics

·The gimbal supports wide voltage 3-6S input;

·Mechanical three-axis image stabilization with a stabilization accuracy of ± 0.02 °;

·Aluminum alloy structure design, lightweight and sturdy, with good heat dissipation performance;

·Highly optimized servo motor vector control algorithm;

·Network standard video output mode;

·Rotation direction controllable angle (PAN): ± 125 °;

·Pitch direction controllable angle (TILT):- 120 ° to+45 °;

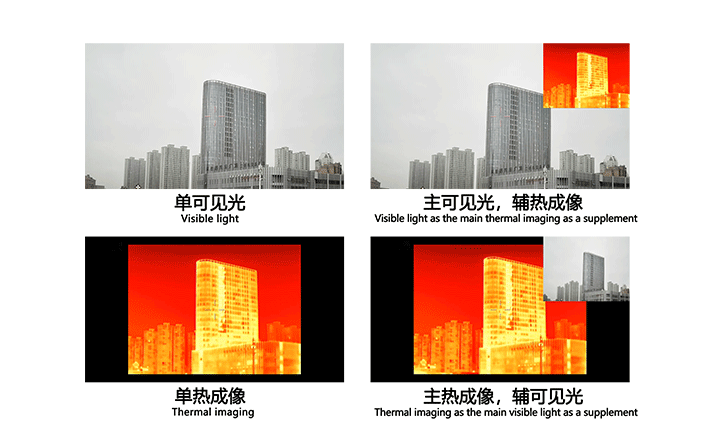

·The PWM receiver supports switching between four modes: pan tilt/pointing control, visible light/thermal imaging picture in picture control;

·The thermal imaging output resolution of the movement is 384 * 288, and the visible light output is 1920 * 1080;

·The hardware of the gimbal body integrates a pseudo color switching physical button, supporting 20 types of pseudo color switching;

·Weight 302g.

Product size
