Product description

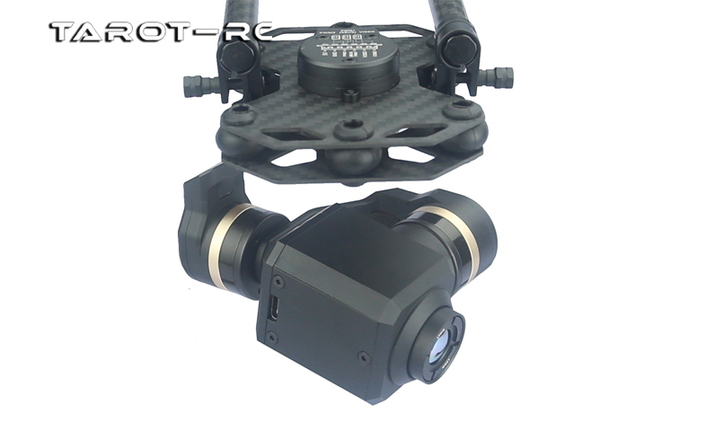

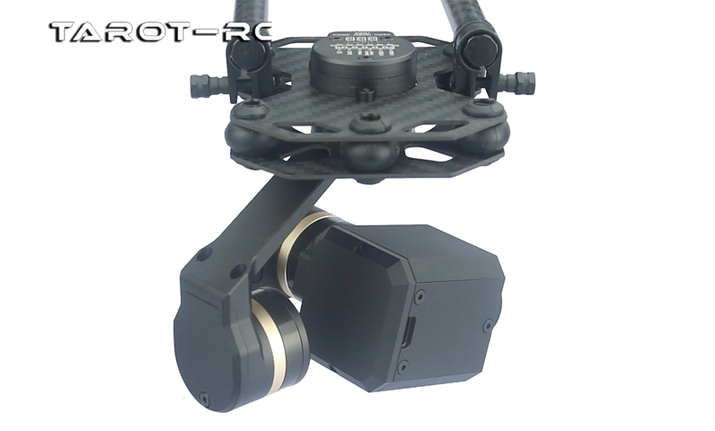

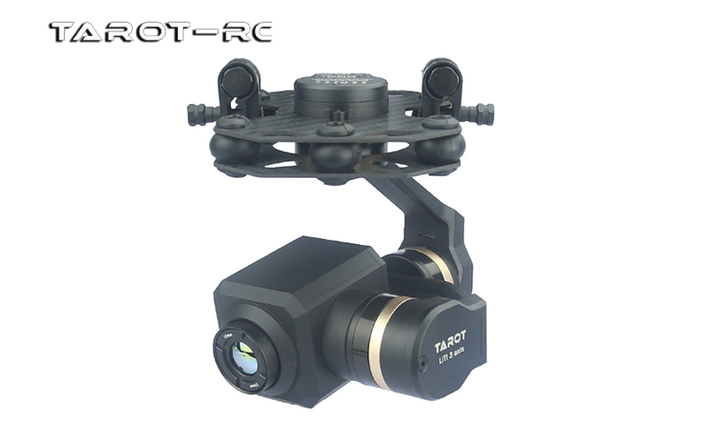

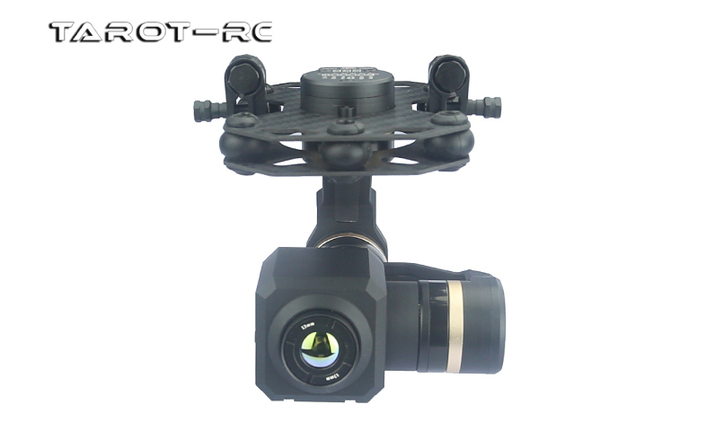

·Tarot factory built-in 640 thermal imaging movement of the three-axis gimbal
·Is our company for the power inspection, fire fighting and many other industry needs and to create a professional level three-axis thermal imaging gimbal
·Industrial design with full CNC integrated ribbon structure
·Built-in independent IMU precise control of the gimbal posture
·Integrated gimbal dedicated servo drive module
·Support pointing follow and FPV first view two working modes
·Equipped with professional-grade 640 thermal imaging camera
·Can be widely used in firefighting, forest security, public security monitoring, search and rescue, environmental law enforcement and many other industries

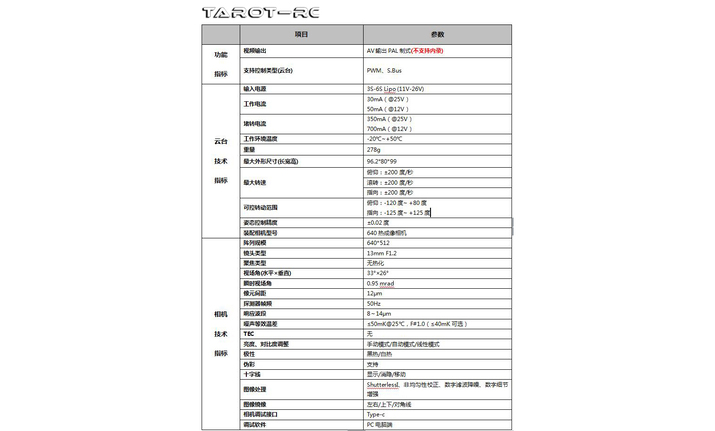

Product characteristics

1.The gimbal supports wide voltage 3-6S input;
2.Mechanical three-axis image stabilization,±0.01°image stabilization accuracy;
3.Aluminum alloy structure design,light and strong,good heat dissipation performance;
4.Highly optimized servo motor vector control algorithm;
5.Quick AV video output mode;
6.Rotation direction controllable angle (PAN):±125°;
7.Pitch controllable angle (TILT): -120°to +80°;
8.S-Bus/PWM receiver support;
9.Movement thermal imaging output resolution 640*512;

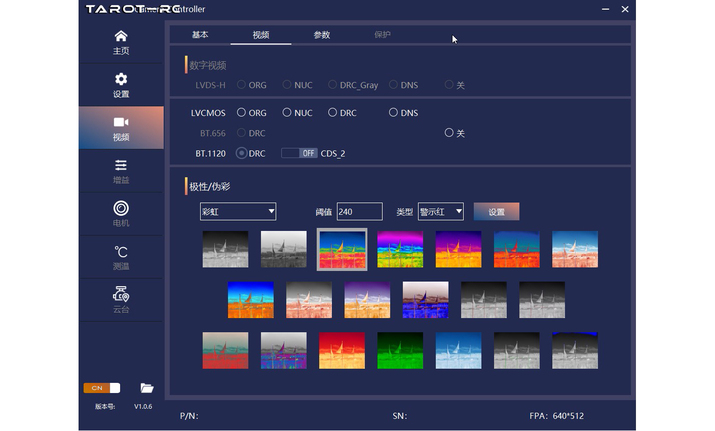

10.Movement debugging software (computer side) multi-mode optional;
11.Weight 278g

Note: The gimbal camera does not support internal recording
